All New Upgraded X-Carve 1000mm!

$3,499.00

Shipping calculated at checkout.

Welcome to the next evolution of the New Upgraded X-Carve 1000mm!  The Newly Upgraded X-Carve 1000mm model now features a fully upgraded Z-Axis, belt system, new waste board with integrated T-Slot and... Read more

Out of stock
SKU: 30684 2.5 KITN/A

Guaranteed Safe Checkout

american expressapple paydiners clubinteracgoogle paymasterpaypalshopify payvisadiscover

Welcome to the next evolution of the New Upgraded X-Carve 1000mm!

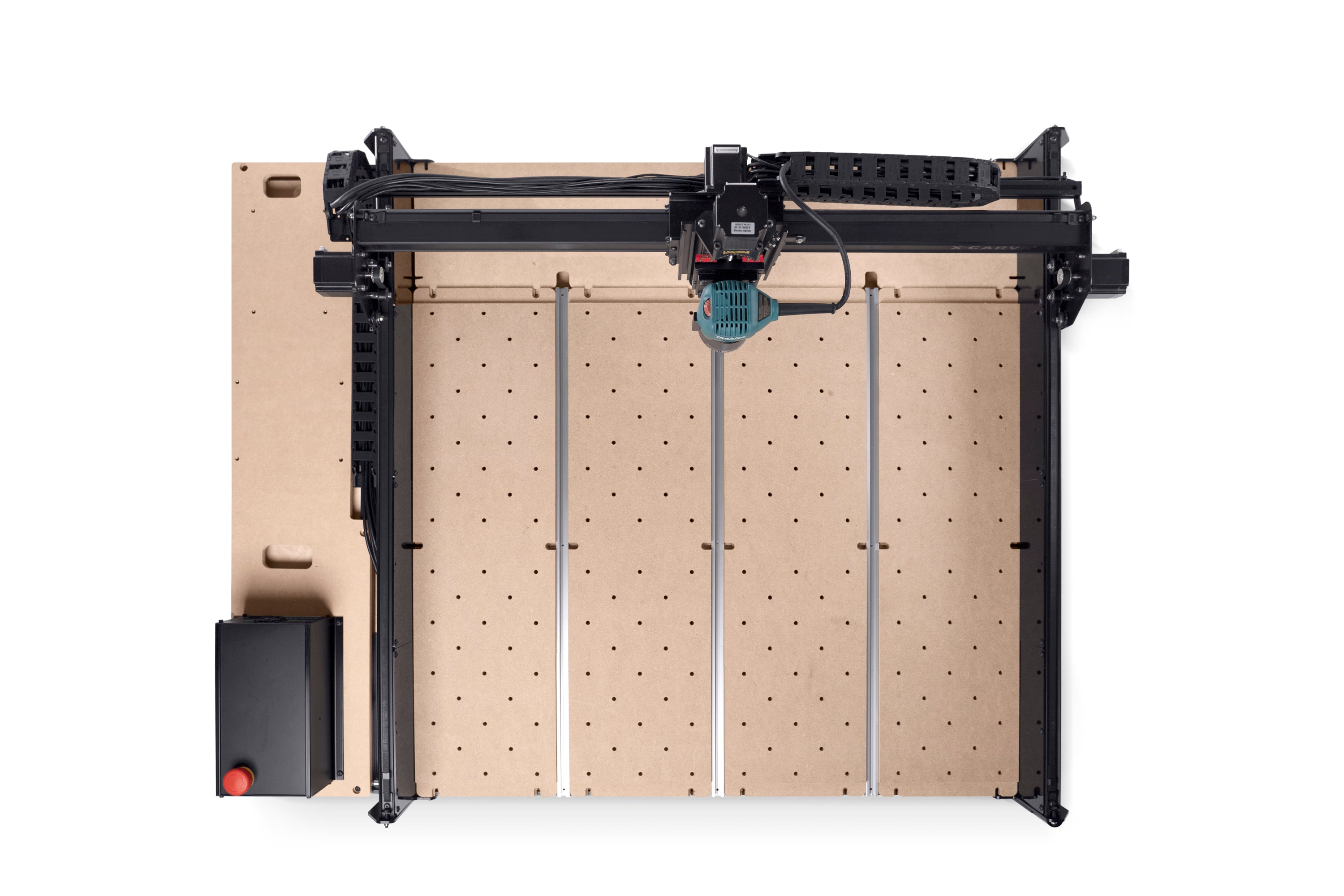

The Newly Upgraded X-Carve 1000mm model now features a fully upgraded Z-Axis, belt system, new waste board with integrated T-Slot and a new spindle!
Increased rigidity, torque, and material removal rate—3X times faster!




Required Assembly
The X-Carve is delivered to your door ready for assembly. All the parts and instructions for ground up assembly are included.
Build-it-yourself kit includes everything you need for ground-up assembly - / Approx 16 hours with detailed instructions and training to have you feeling like an XC expert when you finish
Power
120V (US) or 240V (EU)
Separate plugs for controller & route
Size
The X-Carve is a perfect machine for a small space. It’s compact size opens up more space in your workshop.
 Footprint
(Length Width Height)
41 in x 52 in x 22 in
Weight 100 lbs (approx)
Work Area (X Y Z) 29.5in x 29.5in x 4.5in
Maximum Passthrough Sheet
Width
Materials officially approved for use in X-Carve should not exceed dimensions of: Width (X-axis): 37 inches (93.98 cm), Depth (Y-axis): no set limitation when operating with proper infeed and outfeed solutions due to open front and back machine design, Height (Z-axis):4.5 inches (11.4 cm)



Carvable Materials:
The X-Carve has the power you need to carve a wide variety of materials.

 Carvable Materials* Wood/Wood Composites: Hardwoods, softwoods, MDF, plywood's, etc. Plastics: HDPE, Delrin®, polycarbonate, acrylic, Corian®, etc.
Non-ferrous metals**: Aluminum, brass, copper, etc.



* In order to achieve optimal results when carving, proper cut settings and chip removal are required.  Inventables continues to test and refine cut settings for materials and will provide updated recommendations in Easel when available.

SPINDLE & DRIVE SYSTEM:
Each machine is engineered with reliability in mind.

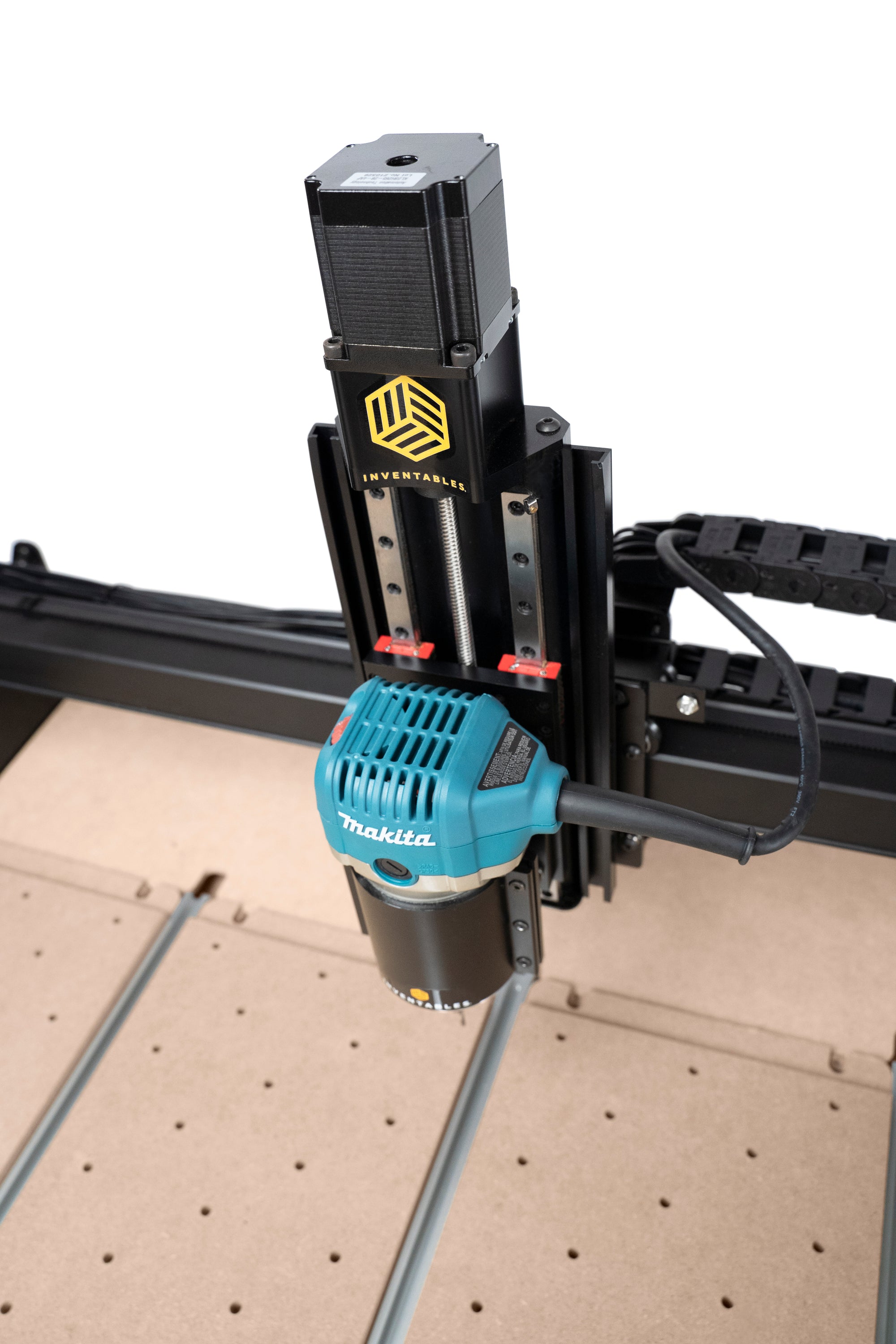

 Drive System Belt drive with Delrin V-wheels X and Y /Precision linear bearings with acme leadscrew Z

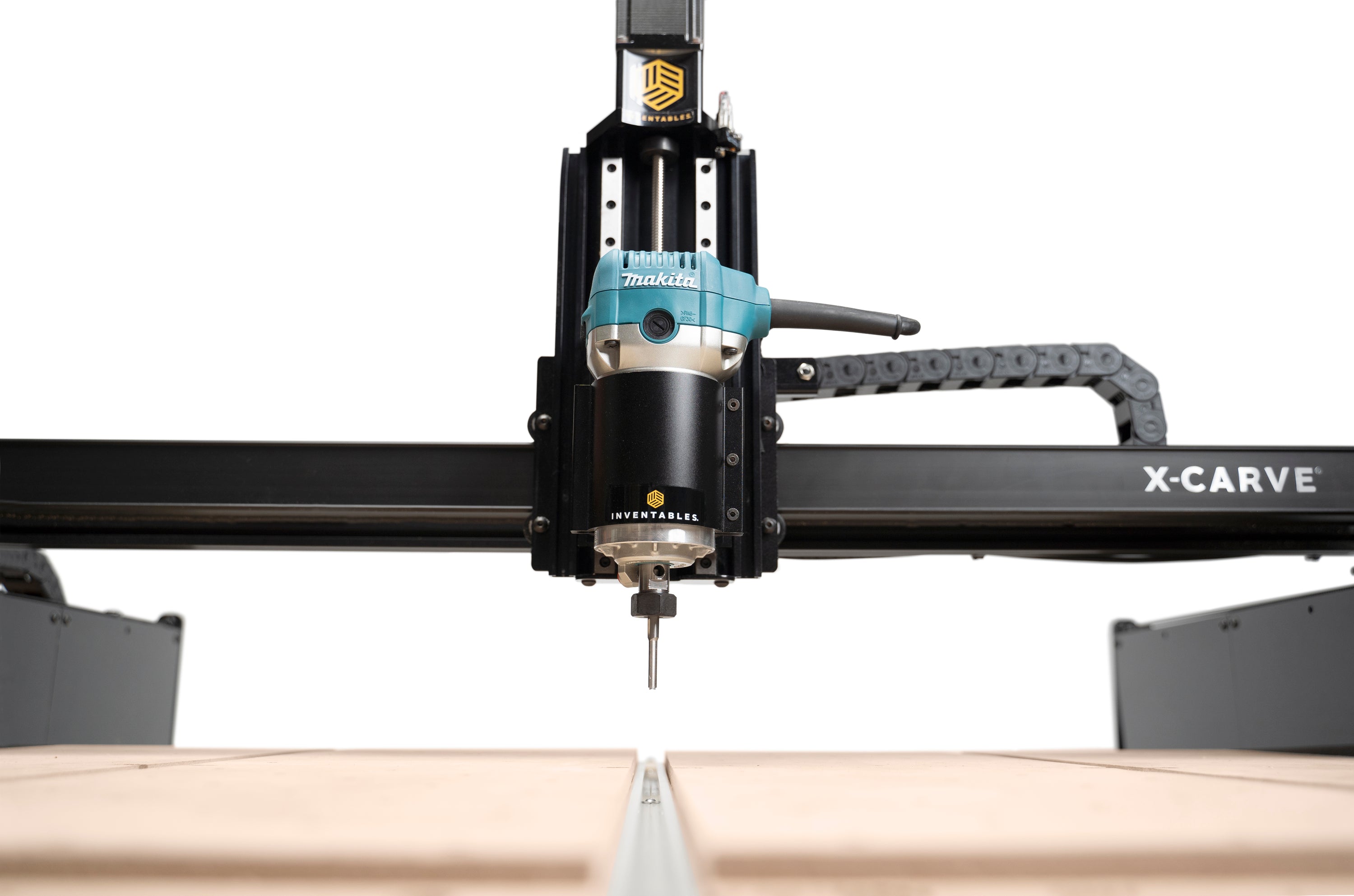

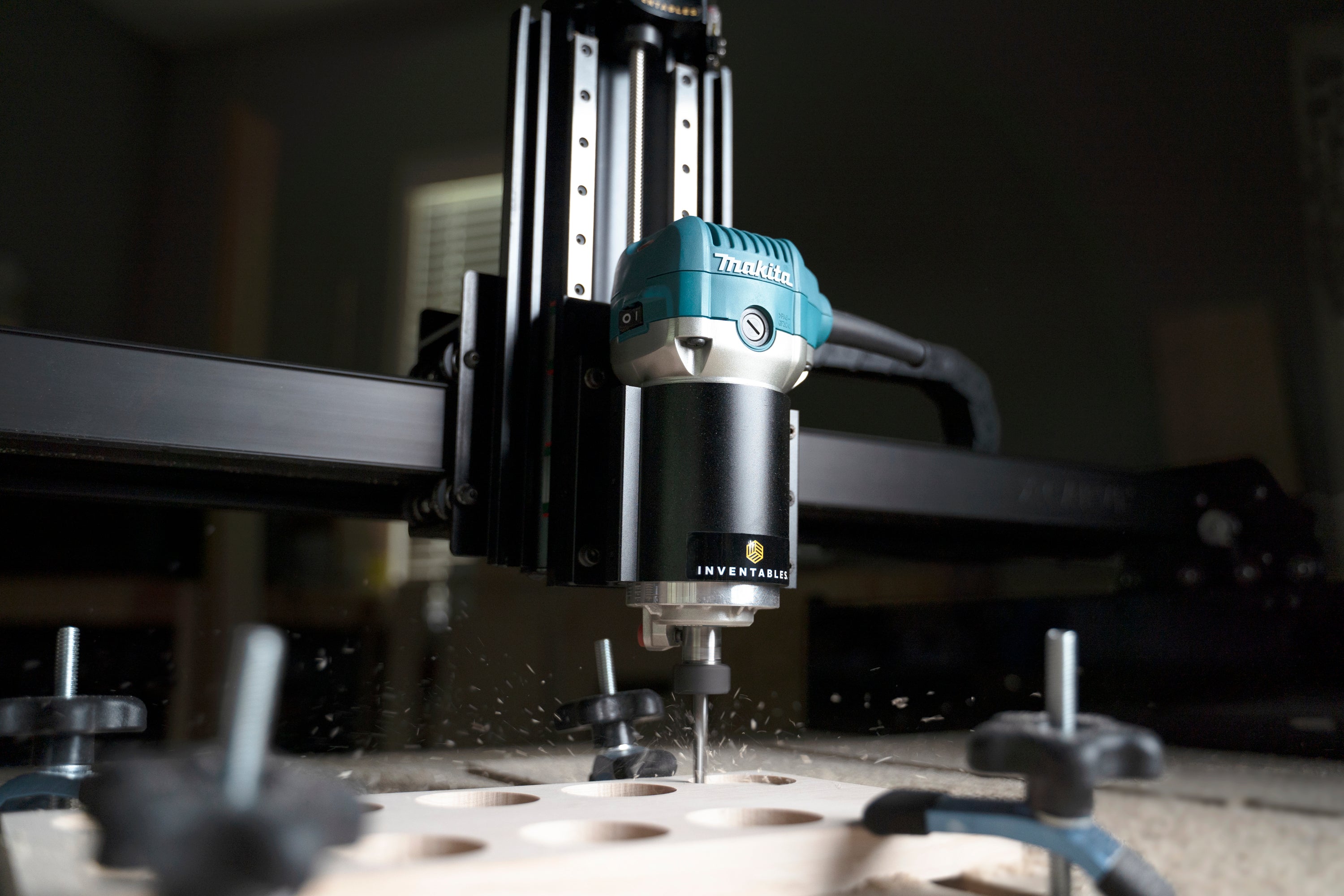

Spindle (Max hp) 1.25hp (800W) Makita router
Collet 1/8” precision collet included with fully loaded machine (for configurated kits, the precision collet is optional)
Accuracy ~ .005in
Spindle No Load Speed 10,000-30,000 RPM (Manual via dial only)



SOFTWARE & SUPPORT:
Every machine comes with a 3 year subscription to Easel Pro. This subscription will give access to more time saving features and designs. Easel Pro users are also eligible for first-look beta testing of new features.

 Software Easel Pro (3 years included)
Warranty 6-month limited warranty included with purchase
Support US-based support team available by email and by phone M-F, 9am-5pm CST
X-Carve 1000mm 2022 Model includes:
  • Core kit components
  • Z-Axis upgrade
  • T-slot waste board kit
  • Rail kit
  • Drag Chain Kit
  • X-Controller Kit
  • Belt and Motor upgrade kit
  • Makita Spindle and Mount
  • Precision collet for Makita router
  • Z-Probe Kit
  • Side Board Kit

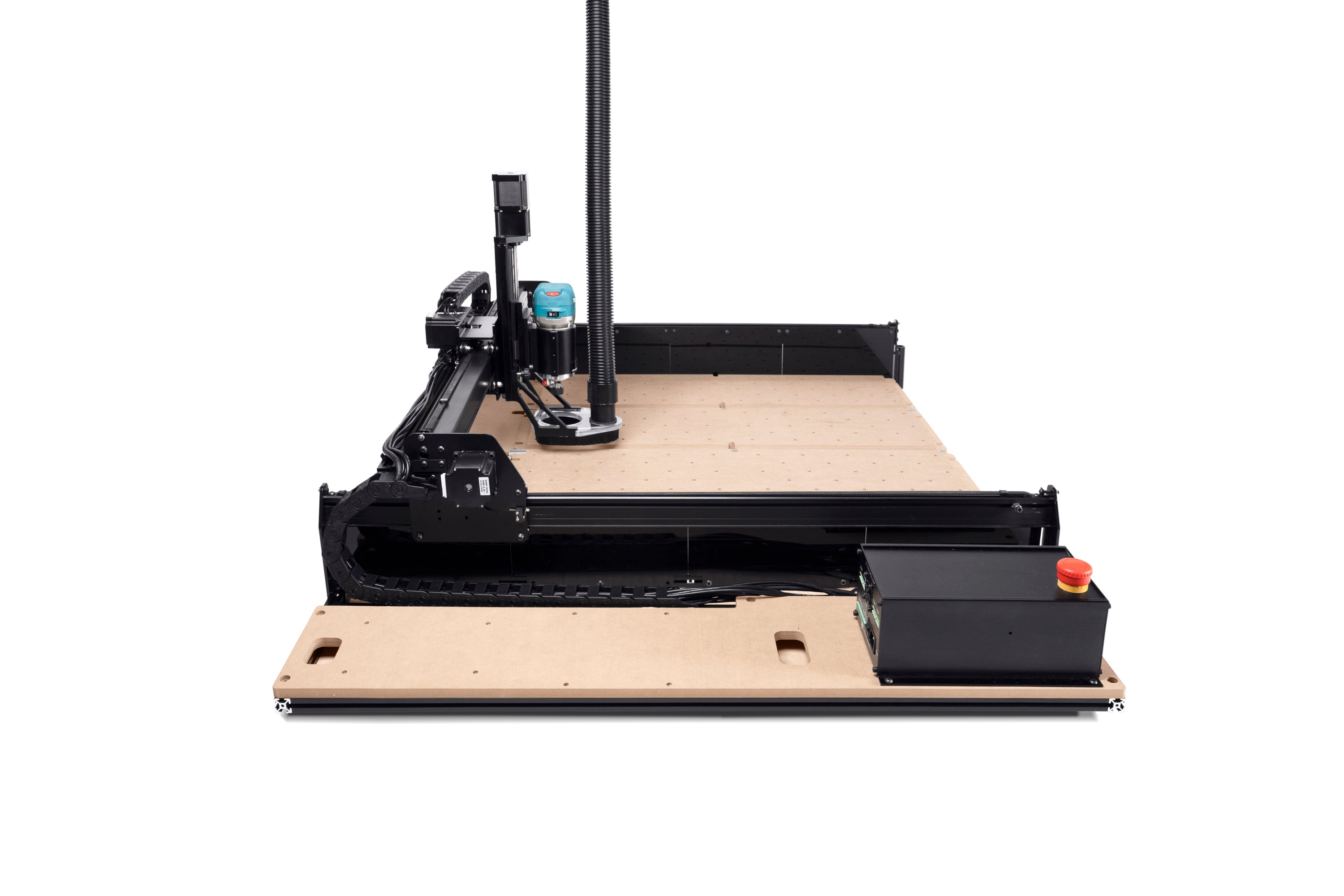

  • Dust Control Kit
  • Homing Switch Kit
  • Tool Kit
  • Digital Calipers
  • Clamp Set
  • 3-year Easel Pro membership
