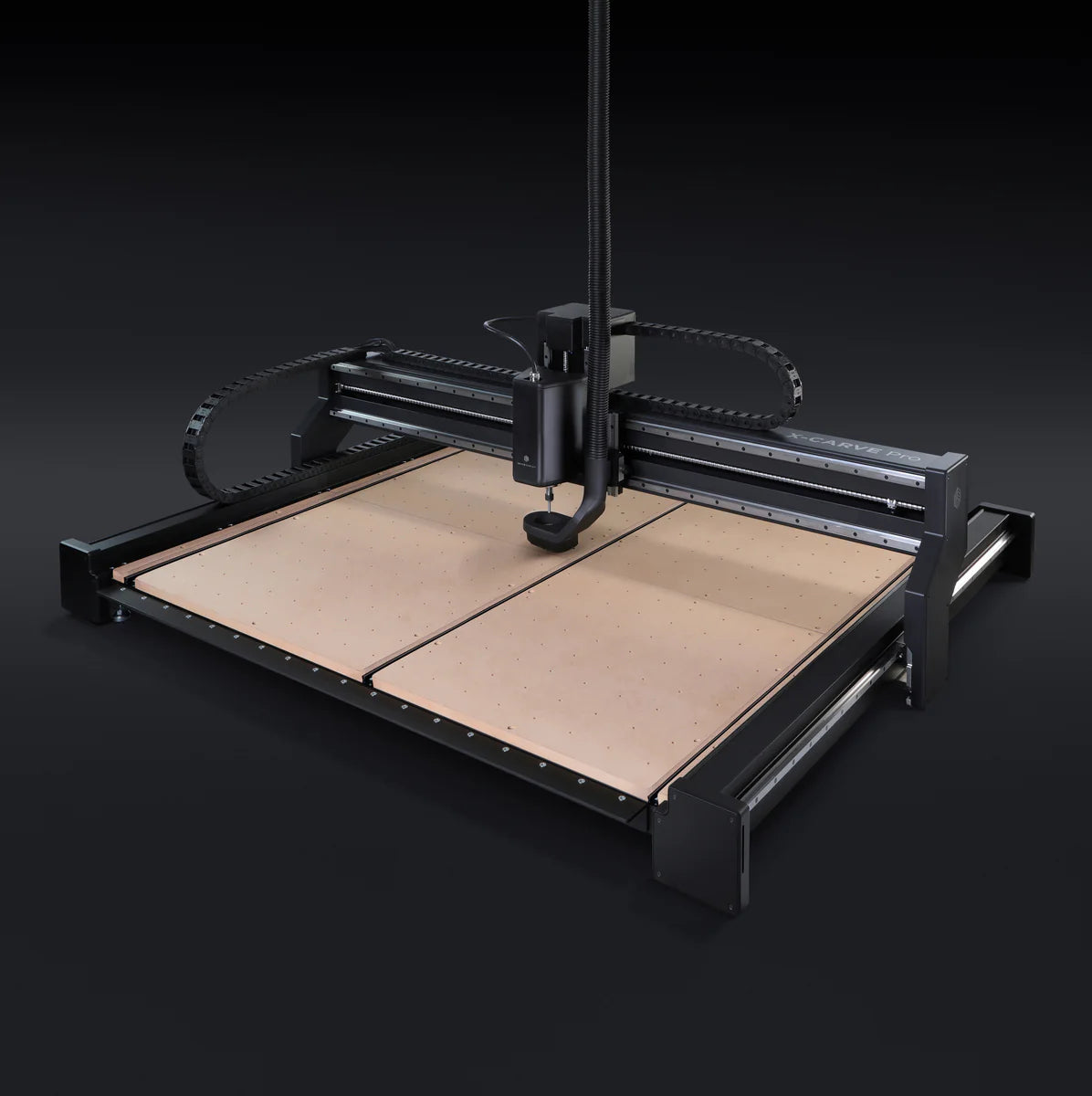

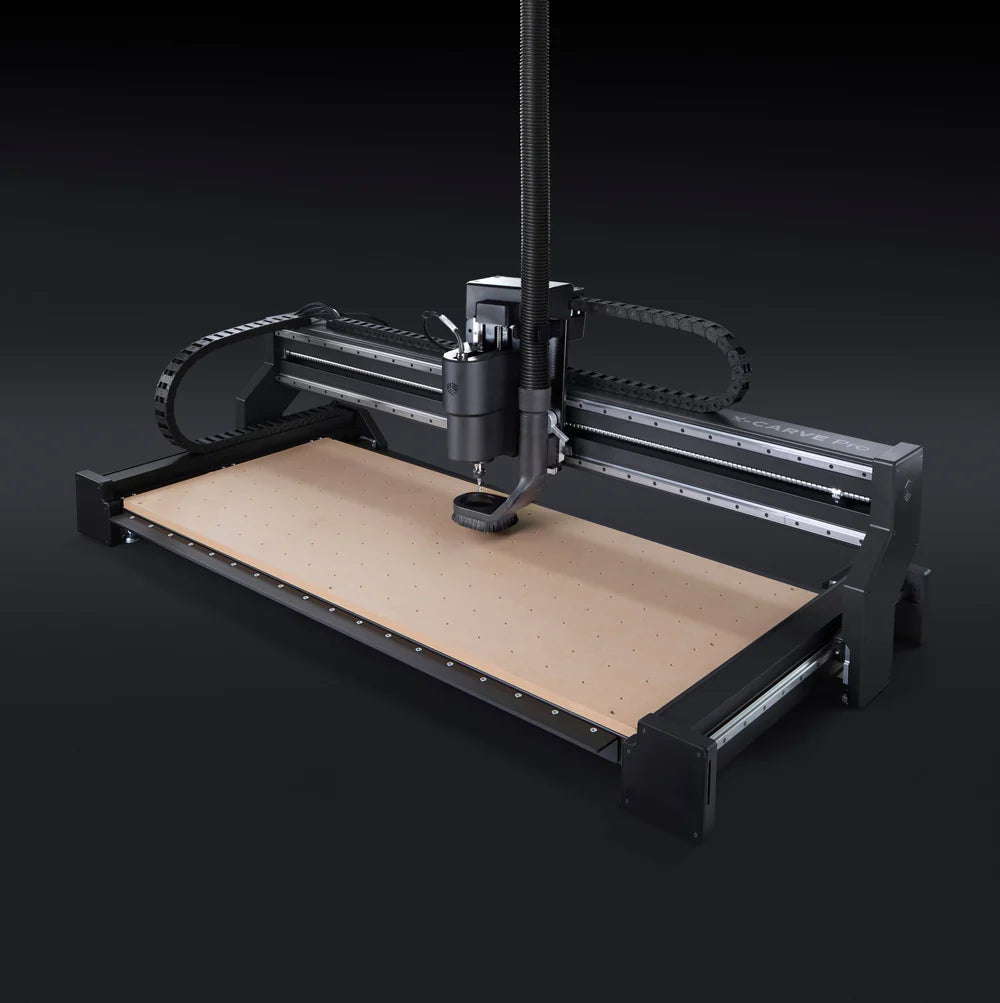

X-Carve Pro CNC System

X-Carve Pro CNC System

$12,995.00
Shipping calculated at checkout.
X-Carve Pro — MODEL
EQUIPMENT LEASING AVAILABLE THROUGH CWB
Click Here to apply and get an instant decision.


Pre-Order X-Carve Pro in Canada now!

Secure your spot in the very first production run of the X-Carve Pro series. Act fast—this exclusive pre-order opportunity will be available for just 30 days! Machines are anticipated to arrive at our warehouse by mid-October, ready to ship straight to your doorstep.

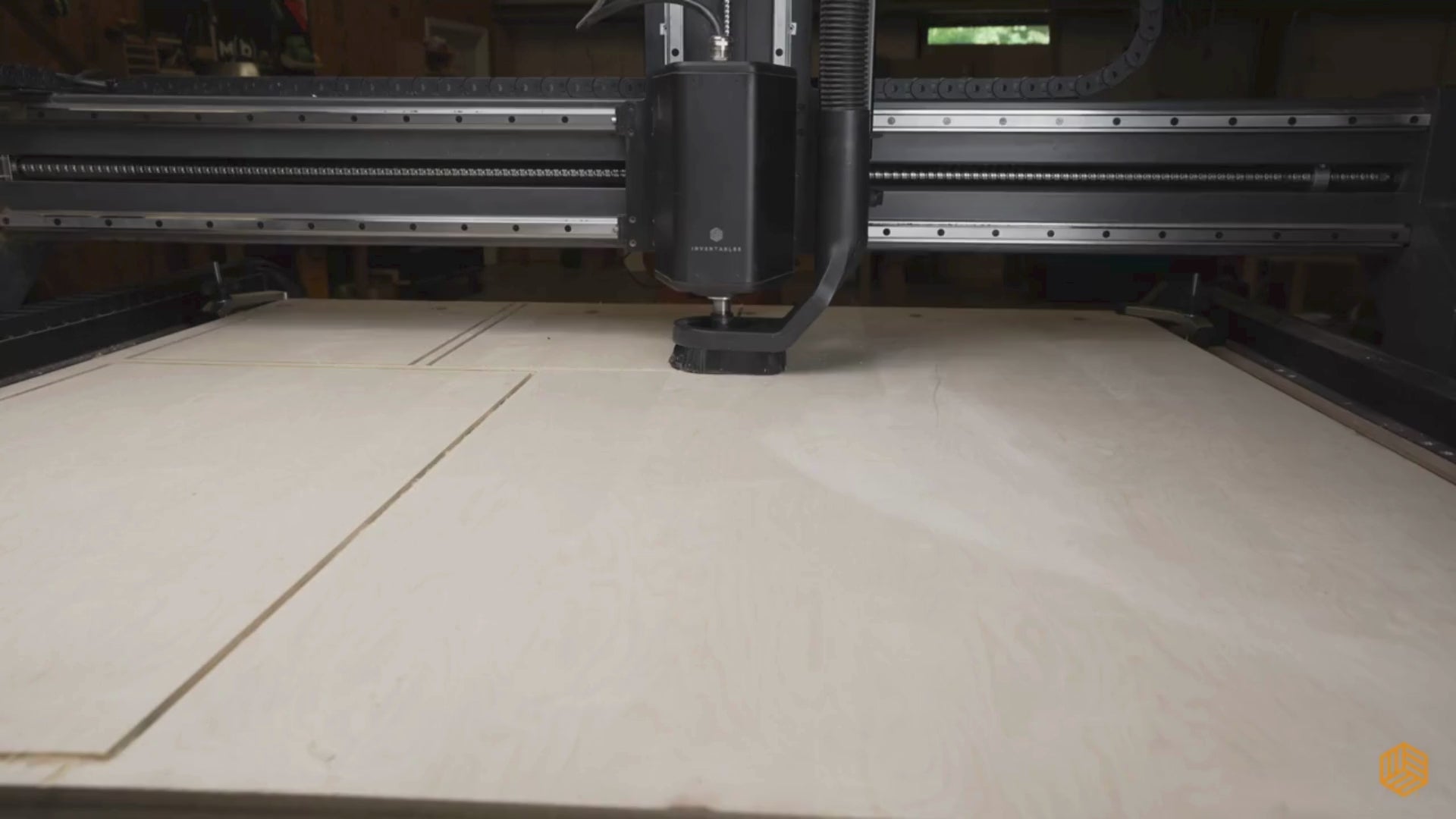

Speed, accuracy, and precision. Full 4x8' sheet carving. An air-cooled spindle to put production in high gear. It's an industrial-grade solution at a small-business price.



Included with machine purchase

  • X-Carve Pro*
  • Controller and cables
  • Separate control with Pause, Resume and Reset button controls, Z-Probe connection point, and E-Stop
  • Dust control system - Dust shoe, Hose Arm
  • Z-probe
  • Clamp set (x2)
  • 1/4" high speed, 2-flute upcut bit
  • V-bit with 1/4" shank
  • Planing Bit
  • Assembly tools (8) - 4ft level, Allen key set (1.5mm to 6mm), Torque wrench, Metric hex bit set, Metric socket set, 17mm wrench, Square
  • CSA required Transformer

*X-Carve Pro assembly required - Assembles in 2 hours


What you'll need:

  • Shop Vacuum (X-Carve Pro's dust hose can be hooked up to most standard shop vac systems)
  • A table or stand for the machine.  Click here for information on the recommend size.


Technical Specifications

Finish

  • Powder-coated Aluminum

Spindle & Cooling

  • Spindle Power: 2hp (1.5kW)
  • VFD: Pre-Programmed
  • Cooling: Air cooled
  • RPM: From 1.5 kW spindle at 8000 - 24000 RPM
  • Collet: ER16-A with ⅛" and ¼" collets included. (Up to 3/8" collet, purchased separately)
  • Accuracy: .001in

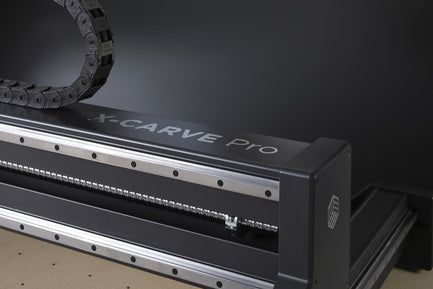

Gantry

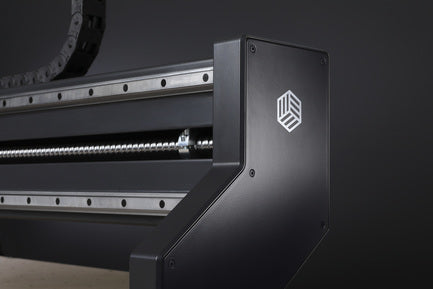

  • Drive System: High-precision 1" ball screws with linear guides
  • Motors: NEMA-23 with 292 oz-in
  • Gantry Clearance: 5in
  • Z-Axis Max Travel: 6.5in

Dust Control

  • Includes:Dust shoe, hose, arm
  • Connects To:Most standard vacuum systems

Control

  • Connectivity:USB
  • Controller:Encased to minimize dust exposure; separate machine interface with Pause, Resume, and Reset button controls, Z-Probe connection point, and E-Stop capabilities

Power

  • 120VAC +/-10% @ 60Hz +/-5%
  • Not compatible with GFI/GFCI outlets and breakers

Carvable Materials

  • Wood/Wood Composites:Hardwoods, softwoods, MDF, plywoods, etc.
  • Plastics:HDPE, Delrin®️, polycarbonate, acrylic, Corian®️, etc.
  • Non-Ferrous Metals**:Aluminum, brass, copper, etc.
  • Import File Types:G-Code, SVG, or DXF files from any software

*In order to achieve optimal results when carving, proper cut settings and chip removal are required. Inventables continues to test and refine cut settings for materials and will provide updated recommendations in Easel when available.
** For optimal results in aluminum and non-ferrous metals, lubrication and tools specifically designed for metals are required.
The XCP is a digital device that is marketed for use in a commercial, industrial or business environment
